Detent Pin 3/4 x 2 Medium Carbon Steel Zinc Clear | Pack of 1 | DTP-0750-2000-ALT

Detent Pin 3/4 x 2 Medium Carbon Steel Zinc Clear | Pack of 1 | DTP-0750-2000-ALT

Trumont Supply

ORDER NOW!

  • $9.37
  • Save $2.51


Part#: DTP-0750-2000 (98320A740)

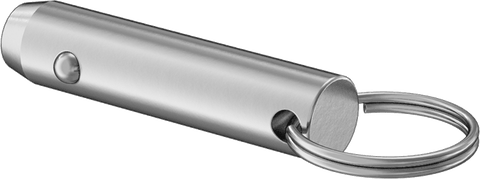

Detent Pin 3/4 x 2 Medium Carbon Steel Zinc Clear

Fastener Head Type
Ring

Shaft Type
Plain

Material
Zinc-Plated Carbon Steel

Diameter
3/4"

Diameter Tolerance
-0.003" to 0"

Usable Length
2"

Diameter at Extended Ball Height
0.856"

Single Shear Breaking Strength
30,400 lbf

Minimum Hardness
Rockwell B85

Ball Material
316 Stainless Steel

End Shape
Chamfer

End Type
Spring-Loaded Ball

Handle Material
Zinc-Plated Carbon Steel

Number of Retaining Balls
1

Pin Type
Quick Release

Spring Material
316 Stainless Steel

Steel Grade
1144 Carbon Steel

System of Measurement
Inch

Country of Origin
United States

DFARS Compliance
Specialty Metals COTS-Exempt

ECCN
EAR99

REACH Compliance
REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant

RoHS Compliance
RoHS 3 (2015/863/EU) Compliant

Schedule B Number
731829.0000

USMCA Qualifying
No
